- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: CY
- Model Number: ChengYi--010
Quick Details
Condition: New
Automatic Grade: Automatic
Place of Origin: Zhejiang, China (Mainland)
Brand Name: ChengYi
Model Number: ChengYi--010
Voltage: According to customer
Power(W): Beginning:315KW / 500KW / 800KW;Normal Running:200KW / 225KW / 300KW
Dimension(L*W*H): 10*25*10.5m / 14*30*10.5m / 17*30*10.5m
Warranty: 12 Months
After-sales Service Provided: Engineers available to service machinery overseas

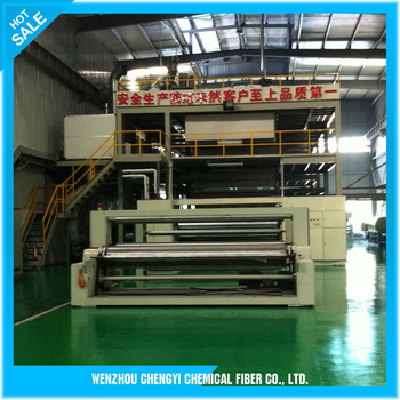

Item: High Grade nonwoven fabric making machine
Machine Size: 10*25*10.5m / 14*30*10.5m / 17*30*10.5m
Beginning Heating Power: 315KW / 500KW / 800KW
Normal Running Power: 200KW / 225KW / 300KW
Machine Speed: 0-250m/min
Capacity: 9000kgs/24h ; 13000kgs/24h ; 18000kgs/24h
Fabric Available Width: 1600mm / 2400mm / 3200mm
Fiber Denier: <=2.3D
Nonwoven Fabric Weight: 9-200gsm
Patterm: Diamond, Oval, Cross And Line
Packaging & Delivery
| Packaging Details: | Packed in wooden case, then in container |
|---|
| Delivery Detail: | Normally Within 3 Months |
|---|
|
| DOUBLE BEAM PP NONWOVEN FABRIC MAKING MACHINETYPECY1600MM-SSCY2400MM-SSCY3200MM-SSWIDTH1600mm2400mm3200mmFIBER DENIER<=2.3D<=2.3D<=2.3DWEIGHT9-200gsm9-200gsm9-200gsmPATTERNACCORDING TO SAMPLEACCORDING TO SAMPLEACCORDING TO SAMPLESCREW DIA. L/D130, 30:1150, 30:1170, 30:1MACHINE SPEED0-250m/min0-250m/min0-250m/minCAPACITY9000kgs/24h13000kgs/24h18000kgs/24hBEGINNING HEATING POWER315KW500KW800KWNORMAL RUNNING POWER200KW225KW300KWPOWER CONSUMPTION700KWH700KWH700KWHTRANSFORMER REUIREMENT315KW500KW800KWMACHINE SIZE10*25*10.5m14*30*10.5m17*30*10.5mCONTAINER REQUIREMENT6910 |
Advantage: 1) THE MACHINE HAVE NEW HEATING SYSTEM WHICH CAN SAVE AROUND 25% POWER. 2) THE FILTER CANDLE HAVE NEW TECHNOLOGY WHICH CAN SEPARATE THE CORE AND OUTSIDE FILTER. IT CAN SAVE YOUR COST. 3) THE MACHINE HAVE SCR TECHNOLY THAT CAN PROTECT MACHINE WHEN THE ELECTRIC SUDDENLY OFF.
|
