- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: CY
- Model Number: ChengYi--1920
Quick Details
Condition: New
Automatic Grade: Automatic
Place of Origin: Zhejiang, China (Mainland)
Brand Name: ChengYi
Model Number: ChengYi--1920
Voltage: According to customer
Power(W): Beginning:200KW / 250KW / 315KW;Normal Running:150KW / 200KW / 280KW
Dimension(L*W*H): 40*15*10.5m / 40*18*10.5m / 40*20*10.5m
Warranty: 12 Months
After-sales Service Provided: Engineers available to service machinery overseas

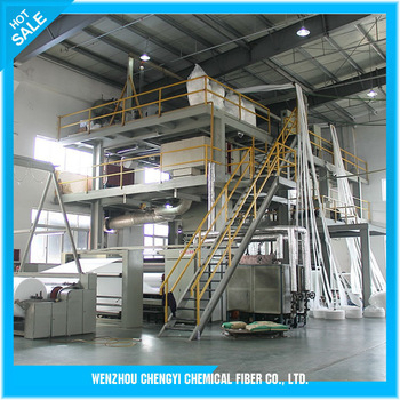

Item: High Grade nonwoven fabric making machine
Machine Size: 40*15*10.5m / 40*18*10.5m / 40*20*10.5m
Beginning Heating Power: 800KW / 1000KW / 1300KW
Normal Running Power: 400KW / 500KW / 600KW
Machine Speed: 0-250m/min
Capacity: 9000kgs/24h ; 13000kgs/24h ; 18000kgs/24h
Fabric Available Width: 1600mm / 2400mm / 3200mm
Fiber Denier: <=2.3D
Nonwoven Fabric Weight: 9-200gsm
Patterm: Diamond, Oval, Cross And Line
Packaging & Delivery
| Packaging Details: | Packed in wooden case, then in container |
|---|
| Delivery Detail: | Normally Within 3 Months |
|---|
| SINGLE BEAM PP NONWOVEN FABRIC MAKING MACHINE |
TYPE
| CY1600MM-S | CY2400MM-S | CY3200MM-S |
WIDTH
| 1600mm | 2400mm | 3200mm |
FIBER DENIER
| <=2.3D | <=2.3D | <=2.3D |
WEIGHT
| 9-200gsm | 9-200gsm | 9-200gsm |
PATTERN
| ACCORDING TO SAMPLE
| ACCORDING TO SAMPLE
| ACCORDING TO SAMPLE
|
SCREW DIA.
| 130, 30:1 | 150, 30:1 | 170, 30:1 |
MACHINE SPEED
| 0-150m/min | 0-150m/min | 0-150m/min |
CAPACITY
| 4500kgs/24h | 6500kgs/24h | 9000kgs/24h |
BEGINNING HEATING POWER
| 200KW | 250KW | 315KW |
NORMAL RUNNING POWER
| 150KW | 200KW | 280KW |
POWER CONSUMPTION
| 700KWH | 700KWH | 700KWH |
TRANSFORMER REUIREMENT
| 200KW | 250KW | 315KW |
MACHINE SIZE
| 10*18*10.5m | 14*20*10.5m | 17*20*10.5m |
CONTAINER REQUIREMENT
| 4 | 5 | 6 |
Advantage: 1) THE MACHINE HAVE NEW HEATING SYSTEM WHICH CAN SAVE AROUND 25% POWER. 2) THE FILTER CANDLE HAVE NEW TECHNOLOGY WHICH CAN SEPARATE THE CORE AND OUTSIDE FILTER. IT CAN SAVE YOUR COST. 3) THE MACHINE HAVE SCR TECHNOLY THAT CAN PROTECT MACHINE WHEN THE ELECTRIC SUDDENLY OFF. |
